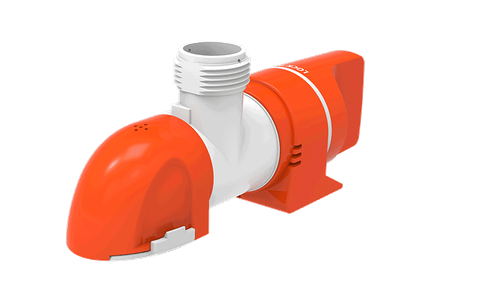

Bơm Nước Lườn Tự Động ( Loại Thấp) 12V, Lưu Lượng 1100GPH, Cống Suất 36W
dùng cho cano có lườn thấp và hút sạch nước trong đáy tàu
FEATURES & BENEFITS

- Easy to clean - easy to remove and replace for cleaning - Sealed efficient, long life motors
- High performance - Flow up to 1100 US gals per hour - Easy to clean- snap fit assembly
- Efficient operation - Very low power consumption - Exclusive moisture tight seals
- Non-return valve included - to prevent backflow - Motor can be sold separately
- Marine grade silicon blocked, tin coated wiring - Stainless-steel motor shaft
- Five-blade impeller to ensure high flow rate - Anti-Airlock protection
- CE, RoHS, ISO 8846, ISO8849 standards - Quiet operation
- Submersible and ignition protected - 1 Year Warranty
- Low profile strainer - Leaves the bilge almost dry - New innovative split quick-connect joint design removes and installs in seconds!
- No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. |
.gif)
DETAILS
|
1.High or low water sensing automatic mode, pump starts when water reaches 4.5cm/1.77'' level, and stops when the current is less than 2.2A for 15 seconds. |
|
|

|
 |
|
2.Low narrow design for tight/awkward bilge spaces for boats under 24m/79ft |
|
|
|
3. Low profile strainer - Leaves the bilge almost dry |
|
|
.jpg) .jpg) |
|
4. New innovative split quick-connect joint design removes and installs in seconds! No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. |
|
|
|
5. Include removable discharge straight and angel fittings to suit your installation. Threaded discharge nozzle. (3/4”+1”, 1’’+1-1/8’’ straight fittings and 1-1/8’’ elbow fitting). Multiple ports are available |
|
 .jpg) |
.jpg)  |
|
6. 1-1/8” 29mm 90o fitting sold separately with 360° rotation function to meet any angle installation requirement. No check valve with 90o fitting |
|
|
7. The pump body is designed with a 360-degree rotation function, which can quickly adjust any angle to meet installation requirements |
|
  |
 |
|
8. Motor can be sold separately |
|
|
|
9. Hidden Air Vents in the Body – helps prevent air locking in challenging plumbing installations and helps with the check valve |
|
|
 |
.jpg) |
|
10. Backflow Prevention – The non-return check valve prevents water left in the discharge from running back, keeping bilges dryer and cleaner |
|
|
11. Installation
|

|

|
12. Wiring Diagrams
|

|
