Tời điện 12V C1212C-8MM DIN766, Công Suất 1200W hàng mới 100%
Chất Liệu: Inox 316 Không Gỉ
Điện Áp: 12V. 85A
Sức Kéo:220KG
Tốc Độ Kéo: 40 mét / Phút
Cân Nặng:; 10KG
Phù Hợp : Xích 6mm , DIN766
The Five Oceans Pacific 900 Vertical Windlass carries a stylish look of 100% stainless-steel design, which sits elegantly on the deck. Not to mention, it's fitted with a heavy-duty lever for easy installation. It includes an impact-resistant motor cover, solenoid and standard switches which fit perfectly on the cockpit and bow of the vessel. This Pacific series windlass is ideal for your average cruiser, the bigtime fisherman, those made for speed or the calm sailor
*Noteworthy is the importance of the gypsy creating the perfect contact between rope and chain.
Note: For the vertical windlass series, the motor allows for a 90-degree rotation at 12 o'clock, 3 o'clock, 6 o'clock, & 9 o'clock. Depending on the spacing that permits for positioning.

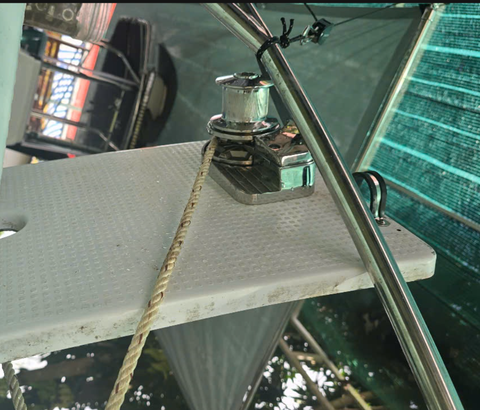

Installation Details
Note for decks that are not flat, a suitable mounting pad may be required to take up camber or sheer. Decks made of a thin, foam or balsa laminate construction, will require reinforcement in order to spread the loads that will be applied to the deck while the windlass is in use. The standard (1/4") threaded mounting studs supplied suit deck and packing thickness of up to 35 mm (1 1/4"). These are adequate for most installations.
FEATURES:
DIY - ready mounting template for convenient on-deck installation
Powerful motor for fast and secure anchor retrieval at the push of a button
Includes a dual set of switches for either the bow or the console.
Suitable for boats up to 35 feet in length
Backed by a 1-year warranty

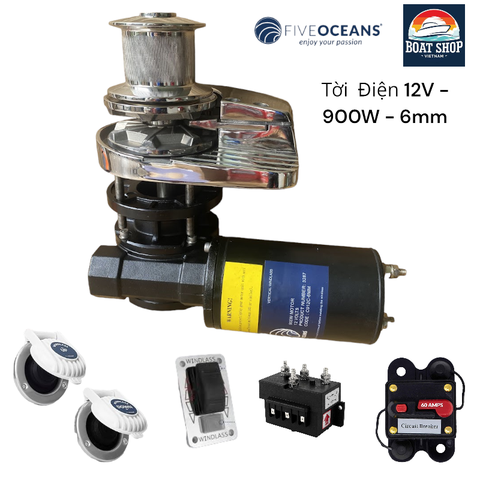

INCLUDES:
- Windlass
- Dual-Directional Solenoid
- 80 Amp Circuit Breaker
- Up/Down Rocket Switch
- Up/Down Foot Switch
- Installation Winch
- Manual w/Mounting Template
SPECIFICATIONS:
Type: Vertical
Model: Pacific 900
Motor: 900W
Maximum Pull: 1450 lbs (657 kg)
Material: AISI316 Stainless Steel
Voltage: 12 Volts
Current draw(A): 55 Amps - Max current draw(A): 75Amps
Circuit Breaker: 80 Amps
Boat Length: up to 35 ft
Rode Type: Rope/chain
Chain Size: 1/4 inches HT G4
Rope Size: 1/2 inches (12 mm) 3 strand nylon
Rope Type: ONLY Three(3) strand nylon rope.
Retrieval Speed: 70 Feet per minute
Drop Speed: 131 Feet per minute
Max. working load (kgs/Ib): 220/484
Max. power pull (kgs/Ib): 657/1450
IMPORTANT NOTICE: All of our Anchor and Docking products (like Windlasses, Anchors, Anchor Rodes, Anchor Rollers, Dock Lines, Mooring Accessories, Quicklinks, Chains, Shackles and Swivels) are recommended for use under normal weather and sea conditions. In case of extreme circumstances such as hurricanes, etc, the right precautions must be taken.
Five Oceans/Baron USA will not be responsible if the products are used under unusual weather and sea conditions.
